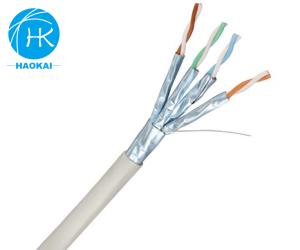

1000mhz 1000ft Sstp FFTP CAT7 Lan Cable Cat6a Internet Communication Cable 305m

Brand Name : HAOKAI

Model Number : FFTP CAT7 cable

Certification : CE,ROSH

Place of Origin : Dongguan

MOQ : 10000m

Price : By negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000m/1day

Delivery Time : 7 work days

Packaging Details : BOX

Power : CCA Wire

Material : BC,CCA

Package : 305M, 1000FT, Pull Box, Pallet

Cable Length : 5ft/1.5m

Jacket Material : PVC

Drain Wire : 0.80±0.005mm TC

Shielding : UTP (Unshielded Twisted Pair)

Contact Now

FFTP CAT7 Sstp Cat7 1000mhz Cat7 Lan Cable F/Ftp Cat6a Internet Cable Communication Cable Cat7 Cable 1000ft Cat7 305m

Material Instruction
1.CCA or pure copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.

Physical Electrical Characteristics

Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Support 10-Gigabit Ethernet netword transmission requirements.


Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 160pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-550MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -50~+70°C;
Permitted bend radius: Over 8 times diameter of the cable.

Transmission Performance for reference

Category FFTP CAT7 Jacket Physical Properties

Before Aging Tensile Strength(Mpa)≥13.5

Elongation(%)≥150
Test Standard ISO/IEC 11801,TIA/EIA 568B.2 IEC61156-5
Conductor Material Solid Bare Copper Aging Period(°C*hrs) 100°C*24h*7d
Nom.O.D. 0.585±0.003mm

After Aging Tensile Strength(MPa) ≥12.5

Elongatio n(%) ≥125
Insulation Material Skin-foam-Skin PE
Nom.O.D. 1.40±0.05mm Cold bend(-20±2°C*4h) No visible cracks
Shield

Al Foil

100%

 Braid No braid Electrical Characteristics (20°C) Impedance(Ω) 100±15
Jacket Thickness 0.65±0.05mm Delay Shew(ns/100m) ≤45
External O.D. 7.4±0.2mm NVP 69%
Material LSZH Capacitance(nf/100m) ≤5.6
Color According to Requires DC Resistance(Ω/100m) ≤9.5
Rip-cord Yes Drain Wire Tinned copper DC Resistance Unbalance(%) ≤2.0


Package Details

305meters or 1000ft pull box or wooden drum

Two boxes into a carton
